pyUserCalc: A Revised Jupyter Notebook Calculator for Uranium-Series Disequilibria in Basalts
Contents
Explore: Single Column Model
This notebook provides an interactive plot that in its default mode, solves the one-dimensional steady-state equilibrium transport model described in Spiegelman (2000). The model is initialized the model, we solve for a single column and plot the results and for comparison the disequilibrium transport model can also be selected
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
import UserCalcThe next cell below will read in the input data using the user filename (e.g. 'sample'):
runname = 'sample'
input_file = 'data/{}.csv'.format(runname)
df = pd.read_csv(input_file, skiprows=1, dtype=float)1Single column equilibrium transport model¶
In its default mode, UserCalc solves the one-dimensional steady-state equilibrium transport model described in Spiegelman (2000). Below we will initialize the model, solve for a single column and plot the results.
First we set the physical parameters for the upwelling column and initial conditions:
import ipywidgets as widgets
from ipywidgets import VBox, HBox
def plot(phi0 = 0.008, W0 = 3., n = 2., Da=10.):
"""
Parameters
----------
phi0 : float
Maximum melt porosity
W0 : float
Solid upwelling rate in cm/yr. (to be converted to km/yr. in the driver function)
n : float
Permeability exponent
"""
# Initial activity values (default is 1.0):
alpha0_238U = 1.
alpha0_235U = 1.
alpha0_230Th = 1.
alpha0_226Ra = 1.
alpha0_231Pa = 1.
alpha0_all = np.array([alpha0_238U, alpha0_230Th, alpha0_226Ra, alpha0_235U, alpha0_231Pa])
# model = UserCalc.EquilTransport if model_name == 'EquilTransport' else UserCalc.DisequilTransport
us = UserCalc.UserCalc(df, model=UserCalc.EquilTransport, Da=Da)
df_out_eq = us.solve_all_1D(phi0, n, W0, alpha0_all)
# fig = UserCalc.plot_1Dcolumn(df_out_eq)
us_diseq = UserCalc.UserCalc(df, model=UserCalc.DisequilTransport, Da=Da)
df_out = us_diseq.solve_all_1D(phi0,n,W0,alpha0_all)

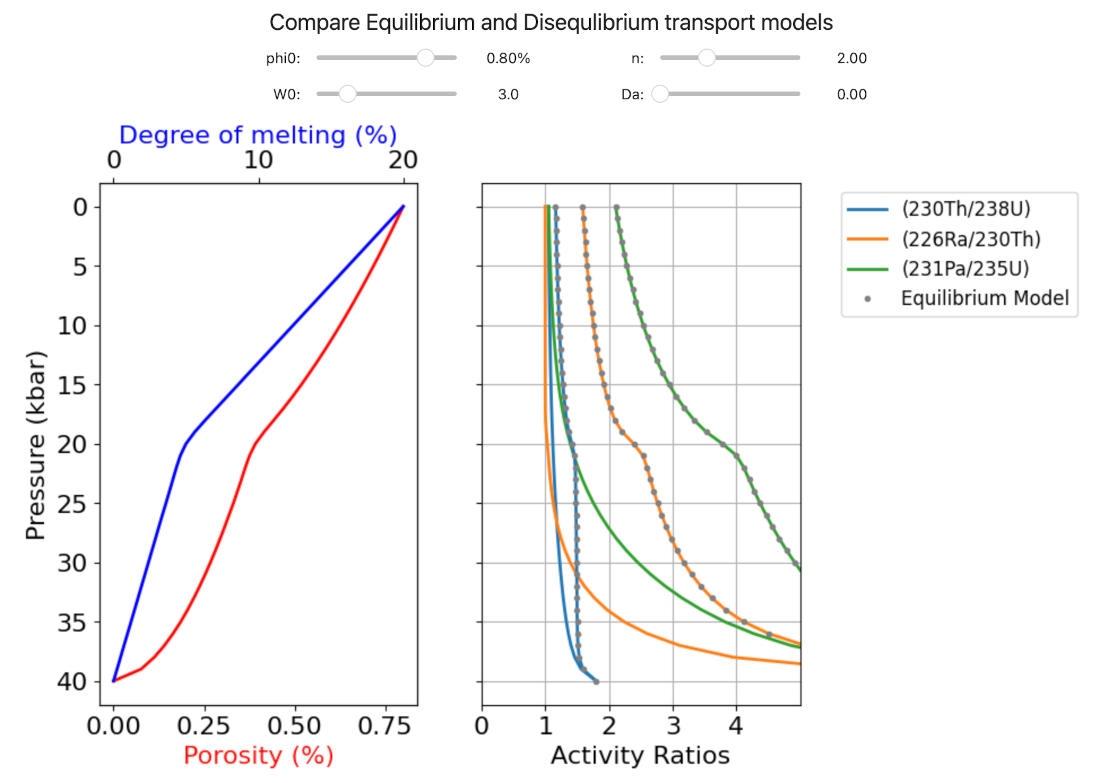

fig, axes = UserCalc.plot_1Dcolumn(df_out)
axes[2].set_prop_cycle(None)
for s in ['(230Th/238U)','(226Ra/230Th)','(231Pa/235U)']:
axes[2].plot(df_out_eq[s],df_out['P'],'-')
axes[2].plot(df_out_eq[s],df_out['P'],'.',color='grey', label="Equilibrium Model")
axes[2].get_legend().remove()
handles, labels = axes[2].get_legend_handles_labels()
axes[2].legend(handles[0:4], labels[0:4], loc="upper right", bbox_to_anchor=(1.9, 1), fontsize=12)
plt.show()
w_phi0 = widgets.FloatSlider(0.008, min=0.001, max=0.01, step=0.0005, readout_format='.2%', description="phi0:")
w_W0 = widgets.FloatSlider(3., min=1., max=10., step=0.1, readout_format='.1f', description="W0:")
w_n = widgets.FloatSlider(2., min=1., max=4., step=0.1, readout_format='.2f', description="n:")
w_Da = widgets.FloatSlider(0., min=0., max=10., step=0.1, readout_format='.2f', description="Da:")
et_out = widgets.interactive_output(plot, dict(phi0=w_phi0, W0=w_W0, n=w_n, Da=w_Da))
title = widgets.HTML(value='<div style="text-align:center;font-size:20px">Compare Equilibrium and Disequlibrium transport models</div>')
controls = VBox([title, HBox([ VBox([w_phi0, w_W0]), VBox([w_n, w_Da]) ])])
plots = HBox([et_out])
ui = VBox([controls, plots], layout=widgets.Layout(display="flex", align_items="center"))
display(ui)
- Spiegelman, M. (2000). UserCalc: A web-based uranium series calculator for magma migration problems. Geochemistry, Geophysics, Geosystems, 1(8), 1016. 10.1029/1999gc000030
